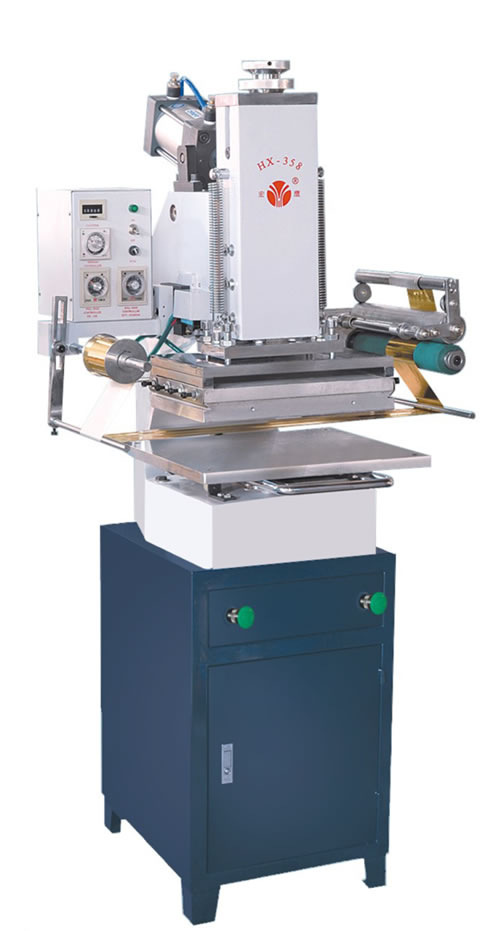

Multifunctional Stamping Machine HX358 Model is an improved stamping equipment taking reference to the foreign advanced
Hand-press stamping machine.The machine is characterized by beautiful construction ,ease of adjustment and operation as well
as stable performance.It can automatically keep a constant temperature ,automatically count,design route and leapfrog with high
Automatic performance .
The machine can thermoprint ,impress and finish printing the special shape printing plate that the common stamping machine can't do .Right operation and skillful technology will achieve perfect stamping results.
The machine is applicable in a large scope.Ir can thermorprint patterns, figures.characters and combined trademarks on paper, leather, Plastic rubber ,PVC soft rubber, woodenware, articles made of bamboo, photo. Cloth materials and technological decorations. It can impress and thermoprint concave patterns without stamping paper with high temperature in strong pressure and thick electroplate (for example:MG plate). It is a must tool in the industries like printing, packaging ,decorating and shoes leather.
Multifunctional Stamping Machine HX358 A Model (manual and pneumatic) is installed with an extra pneumatic function to have it reduce labor.

Main technique data

Model	HX-358BCabinet Pneumatic Hot Stamping Machine
Max.pressure	2000kg
Effective Area of Electric Plate	200×300mm
Working Table Size	320×355mm Adjustable
Stroke for Electrochemical Aluminium	0~500mm Lateral
Motor Power for Electrochemical Aluminium	220V 11W a group
Power for the Electric Plate	220V 1000W
Constant Temperature Range	0℃~300℃
Stamping Speed	1500~2000 PC/H
Volume	720×720×1400mm
Net Weight	180kg
Remarks	It can be made against the order if the stamping area for the electric plate must be increased.
